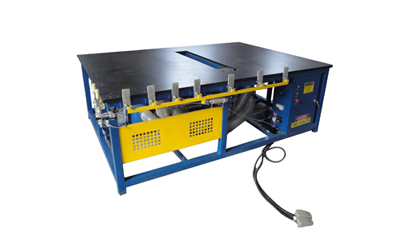

AT2200 Air Float Application Table

Brief Introduction:

For application of Truseal Spacer Tape for the manufacture of Insulating Glass Units

The table utilizes an automatic linear moving vacuum cup to position and

secure the glass to ensure a quick and easy application.

The cup moves in 90 degree increments.

Table size is customized.

Technical Parameter:

Hydraulic power:                  2.2kw

Air blower power:                 4kw

Suction cup power:              0.09kw

Max. glass size:                    2200x2200mm

Pressure:                              0.4-0.6MPa

Weight:                                 750kg
