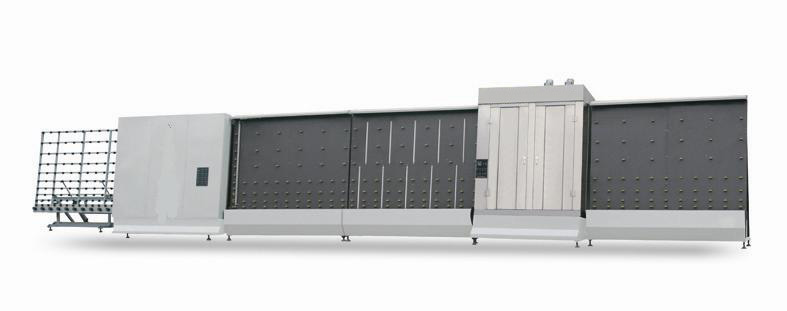

Vertical Insulating Glass Production Line SGLB1800P
Brief Introduction:
SGLB1800P insulating glass production line has two work models, manual operation and automatic operation
The two work models can be achieved by switching over the control panel
SGLB1800PMulti-function insulating glass production line include feeding section, glass washing-drying section,
aluminum spacer installation section, light-inspection section, panel press section and out-loading section
Technical characteristic
PLC Control, touch screen control interface
High speed conveyance (40m/min) controlled by PLC frequency control
Separate controller of the feeding section
Low-E glass automatic recognition
Stainless steel washing-drying section
3 pairs of soft nylon brushes
3 separate water circuits
Water tank and pipe feature easy washing
Distance between the brushes is adjustable
Easy brush roller replacement
High speed washing
Wringing roller
Low noise and complete closed drying room
Infinite variable speed brushes
Dark color and cold light inspection back plate
Aluminium spacer decorative bar installation section
Alu-spacer edge distance adjustment device with digital display
Rear and front glass support
Step IG unit available
Hydraulic press plate
500mm open in plate press section for easy repair
Automatic alarm of press plate repair (open and close)
Automatic tilting unload section
Automatic output statistics
Main technical parameter:
Power Supply: 380V/50HZ
Installed power: 22.52kw
Min.glass size: 450X350(mm)
Max.glass size: 2500X1800(mm)
Max.thickness of insulating glass : 40mm
Washable glass thickness: 3~12(mm)
Step Units' max.edge distance: 40 mm
Washing speed: 1~7(m/min)
Overall dimensions: 13600x2700x2850(mm)
|
