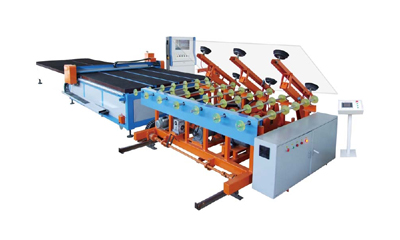

GS-CNC-2620 Automatic Glass Shaped Cutting Process Line
Equipment included:
GS-QSP-2620 Automatic glass sheet loading machine (single side)
GS-CNC-2620 Automatic glass cutting machine
GS-BQZ-2620 pneumatic glass breaking table
GS-QSP-2620 Automatic glass sheet loading machine (single side)
Equipment’s data and performance:
The equipment including the frame system, transport system, vacuum adsorption system,
flip system and electric control system
The materials selected from national standard profile, through welding and aging treatment,
the surface have been moved rust stain and surface oxidation layer by special process,
the surface sprayed high-level painting, the bottom sprayed high-level polyester lacquer.
(the color can choose ).
Vacuum adsorption system with high vacuum rate,
high speed and good stability. The switch using Japan’s SMC brand.
Mechanical configurations:
| Gear and rack |
High precision and Firmly |
| Roller |
Imported PU materials |
| Vacuum cups |
Imported dingqinjiao materials |
| The transport and flip’s motor |
Taiwan chengbang or qiangzhu |
| Vacuum pump |
Shanghai vacuum pump with Germany technology |
| PLC |
OMULONG |
| Touch screen |
Taiwan Haitaike (5.7 inch ) |
| Inverter |
Taiwan DongYuan |
| Master solenoid valves |
Japan SMC / Taiwan Airtac |
Properties:
| Max cutting size(mm) |
2440x1830mm |
| Glass thickness(mm) |
3-15mm |
| Working time(s) |
≤60s/sheet |
| The arm of inverter |
Four arms with 12 vacuum cups |
| Power: |
4.5KW 380V/50HZ (can choose) |
| Required Power: |
0.8MPa |
Technical descriptions:
The modes of flip and suck: Mechanical flip and angle can be adjusted,
it can automatic suck various thickness (3-15mm) glass with high speed and good stability.
the arm of flip including link rod device .
The vacuum and transport equipment : after vacuum adsorption using the gear to transport .
Operator mode: clients can choose automatic or semi-automatic mode to operate it easily.
The interface using the touch screen
The equipment can setting the glass numbers and the location’s sequence automatically .
it can work, suck glass and transport glass automatically, too.
GS-CNC-2620Glass Cutting Machine
Equipment Specifications:
| MAX Cutting Size(mm) |
2440*1830 |
| The Table Highly(mm) |
900±50 |
| The Equipment Weight: |
2T |
| Glass Cutting Thickness: |
3~15mm |
Cutting Parameters:
Cutting Accuracy: (mm/m) ≤±0.25 Cutting Speed 90m/min
Voltage: 220v/380v,3Phase, 50Hz(can choose)
Equipment Performance:
Cutting Holder:
Using Japan SMC Proportion solenoid valves, according to the glass
thickness automatic adjustment pressure, the cutting holder Rotate 360°。
Positioning System
Mechanical photoelectric joint positioning
Conveying Device
AIR and Belt conveyor
Main Features:
This automatic CNC-shaped Glass Cutting Machine allows users to cut out any shape of glass
with high precision. It can connect with Loading machine to work together.
AUTO CAD designed graphs and figures, automatic cutting,
with all the cutting data fully computer controlled.
The operator can edit the glass size for cutting with computer.
The computer can optimize the cutting size, and give out the data for processing,
driven the machine to cut glass sheet automatically in high speed and high precision.
Electrical
| Servo motor |
YASKAWA (Japan) |
| Control Card |
Shanghai NaiKai |
| (Germany technology) |
| Electrical Components |
OMRON or Schneider |
| Pneumatic Components |
Airtac |
Spare part:
Cutting Wheel 8Pcs
Cutting Holding 2Pcs
GS-BQZ-2620Pneumatically Glass Breaking Table
1.The table size:2600mm*2000mm*900mm
2.Breaking Bar's NO.:2
3.With functions of air-float
4.Power::3KW |
