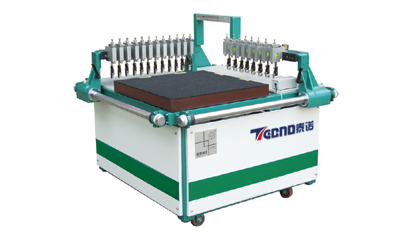

ZJQZ-800 Semi Automatic Dual-Bridge Precision Glass Cutting Table

Description:

The precision cutting table is suitable for mass cutting of square and rectangular sheets of glass.

Cutting process is completed by hand. The distance between cutting boxes can be adjusted manually.

Adjust the space of cutter rack, then push the horizontal and vertical bridge to begin mass cutting.

It can equip with blowing and suction accordingly to production.

The material of tabletop has Blanket, Metal, Resin, Imitation leather, Marble etc.

Features:

High efficiency and easy operation to cut with multiple cutters, if needed, the cutting box can be increased

Self-lubricating cutter holders; easy-to-replace cutter wheel

High precision, long life span, and attractive appearance.

Glass Thickness:            0.1-19mm

Max Cutting Size:            4900 x 3400 mm

Min Cutting Size:             7 x 7 mm

Accuracy:                       < +0.15mm/m
