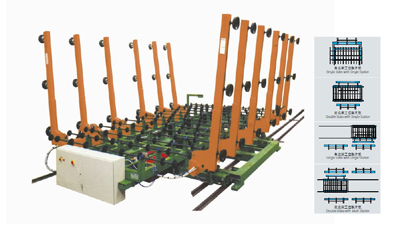

Automatic Glass Loading Table (Double Sides)

Description:



It is automatically loading glass;

Gear motor can help the machine know the position of the glass sheet automatically

Put the Glass-sheets in one/both side of the machine. Controlled by the PLC, automatic

loading glass into the cutting table

Buyer’s special specifications are available.



Technical Data:



Specification QSP-2620 QSP-3725 QSP-6033
Processing Size  2440x1830mm 3660x2440mm 6000x3000mm
Thickness 3~19mm 3~19mm 3~19mm
Processing Speed  ≤50s ≤50s ≤50s
Table height      910±10mm 910±10mm 910±10mm
Overall size 3500×2300×900 mm 4600×3000×900 mm 7200×2300×900 mm
Weight 2500kg 3000kg 3500kg
Total Power 6.5kw 7kw 7.5kw
