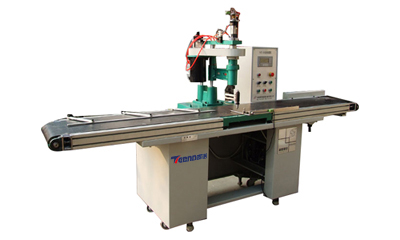

NC-360 Automatic Round Glass Cutting Machine

Description:

With the PLC controller and touch screen, this machine is designed to cut round glass.

By assembling a model，it can also cut shaped glass. It features low labor intensity and high efficiency.

The round-cutting glass cutters are used for batch cutting of round glass 3-550mm in diameter.

Both the manual and pneumatic cutters are equipped with imported alloy cutter wheels

to increase the accuracy and efficiency of the cutting operation.

Technical Data:

Max Cutting Diameter:             400 mm

Min Cutting Diameter:             15 mm

Cutting Accuracy:                    ≤±0.20 mm

Voltage：                                380V/50 Hz
