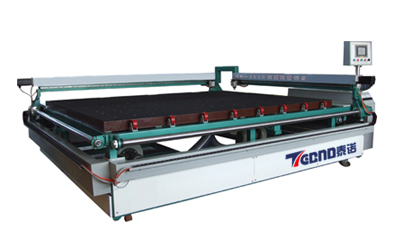

Cutting Table (SK Series for straight line cutting)
Description:
The machine is equipped with advanced international high-precision servo motors and bearing thread spindles.
The on-board controller consists of PLC computer, CD drive, touch screen, and reliable peripherals.
With the features of accurate transmission and fast, convenient cutting size adjustment,
the machine is especially suitable for users who want to frequently change the type of specification of glass.
The series of automatic precision cutting tables are suitable for cutting different specifications of linear
and rectangular glass. It should be the first choice for enterprises engaged in processing sophisticated glass
such as decoration glass, special glass, commodity glass, glass for electronic applications
and glass for medical using etc. The cutting table can cut 0.4 to 15 mm thick glass.
The minimum cutting unit is 1mm.
Technical Parameter:
Model |
Outline
Dimension |
Table size |
Glass sheet size |
Min cutting size |
Cutting Precision
|
Weight(kg) |
(L×W×H)mm |
(L×W )mm |
(L×W )mm |
mm |
parallelism |
diagonal |
SK1610 |
2350×1850×1450 |
1600×1000 |
1400×800 |
10×10 |
±0.15 |
±0.20 |
300 |
SK2116 |
2800×2700×1450 |
2100×1600 |
2000×1440 |
10×10 |
±0.15 |
±0.20 |
350 |
Sk2620 |
3300×2850×1450 |
2600×2000 |
2440×1830 |
10×10 |
±0.15 |
±0.20 |
400 | |
