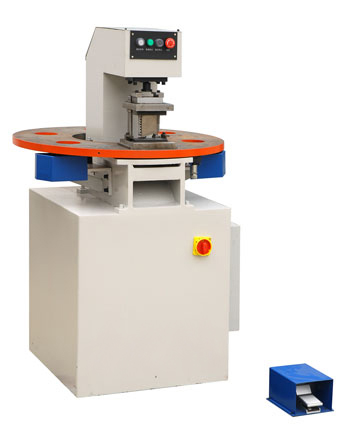

Pressing Machine LY6-50

Features：

The machine used for punching bores process.

Hydraulic power:Station ensures stability and power:equality.

Exchange combined mold conveniently.

Disk-type worktable, can installed six sets of moulds at the same time.

Through rotate the worktable, change the different moulds, high efficiency.

Technical Parameters:

Input voltage：                          380V 50Hz

Input power：                            1.5kw

Motor rotation speed:                1420r/min

Max. punch Pressure：             50KN

Travel:                                      30mm

Max Closing height：                185mm

Die dimension：                        250x200x215mm

Overall dimension：                  900x900x1380mm
