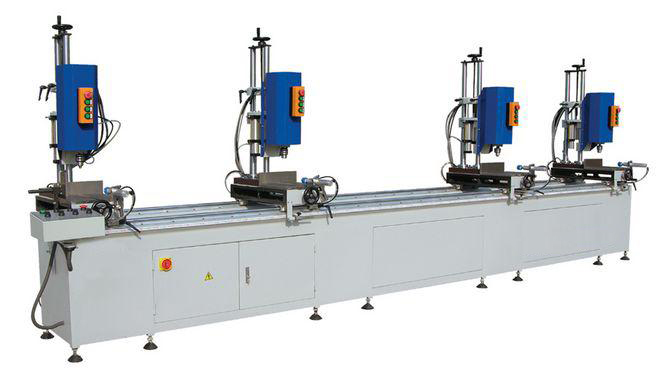

Multi-head Drilling Machine LZD4-13

Features



Used for aluminium&PVC profile holes drilling.

The machine can process several holes at the same time, single hole process is also available.

The holes distances can be adjusted frint and back or from side to side.

Four heads can be working at the same time, more heads are also available.

It futures high speed approach, regular feed and fast feedback.

The movement is controlled by linear bearing.

Adjustable drilling speed by hydraulic damping cylinder.



Technical parameters:



Power                                              380V, 3phase

Input power                                      3.0kW

Air Pressure:                                     0.5-0.8MP

Air consumption:                                  260L/min

Max. Hole diameter:                             13mm

Holes distance:                                    300-5000mm

Drilling head adjustable distance:        60mm

Feeding stroke:                                   125mm

Max. Cross-section:                             200× 200 mm
