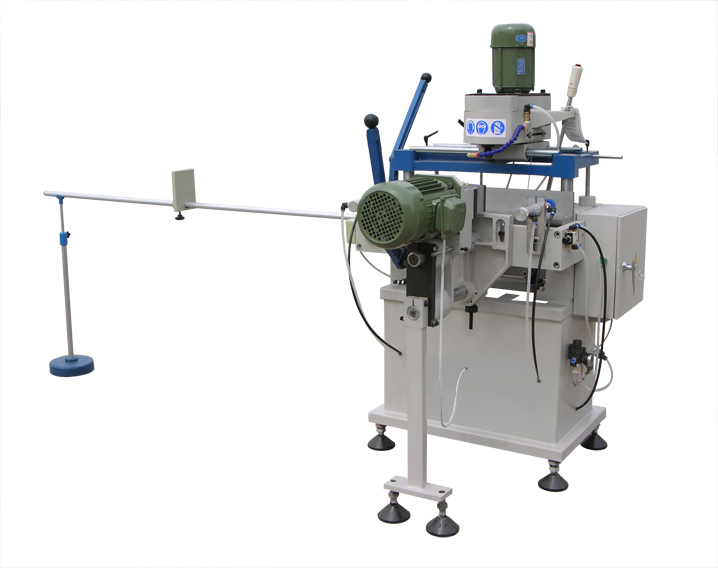

Lock Hole Processing Machine LZF3-300X100

Features：

Used for milling all kinds of lock holes.

Moving up and down of its head ensured

the three processed holes parallel to bottom.

Technical Parameters:

Input voltage：                   380V/50Hz

Input power:                       1.85kw

Air pressure:                      0.4~0.6MPa

Air consumption:                30L/min

Rotation speed:                  9940r/min

Cutter diameter:                 5mm 8mm

Copy routing range:           300*100mm

Overall dimension:             1130*1100*1460mm
