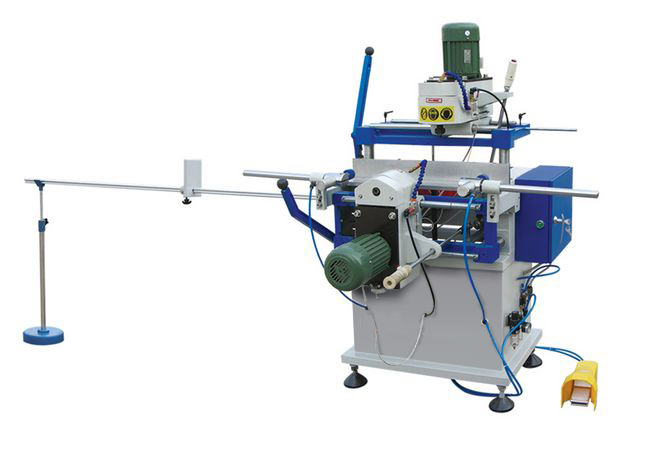

Double-axis Copy Router LZF2-300X100

Features：

Used for copy milling all kinds of holes and grooves.

Belt for speed increase, high speed and high quality milling.

Changeable copying plates for different holes and grooves milling.

Two milling head for both horizontal and vertical direction holes and grooves milling.

Technical Parameters:

Input voltage：                    380V/50Hz

Input power:                        1.5kw

Air pressure:                       0.4~0.6MPa

Air consumption:                 30L/min

Rotation speed:                   9940r/min

Cutter diameter:                  5mm 8mm

Copy routing range :           290*90mm (V)  300*100mm(H)

Overall dimension:              1130*1100*1460mm
