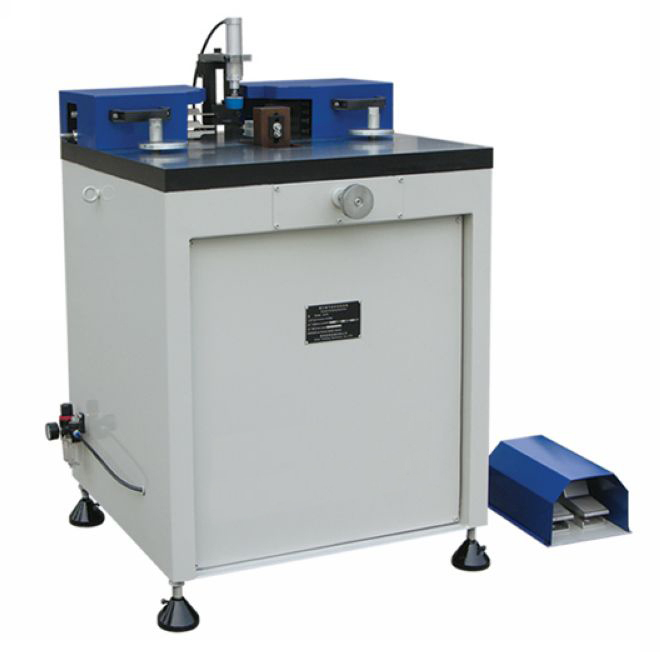

Single Head Corner Crimping Machine LZJ-120

Features：

Used for 90degree corner combining.

Hydraulic system supplied large punching and riveting force.

Left and right punching heads adopt hard synchronous feeding device to made the combination  more firmly.

Screw thread regulates the distance between up and down crimping device.

Technical Parameters:

Input voltage：                                  380V/50Hz

Air pressure：                                   0.5~0.8MPa

Air consumption：                             50 L/min

Max. Profile width：                           120mm

Combining cylinder movement：       75mm

Locator adjustment range：              50mm

Overall dimension：                          1200*1000*1200mm
