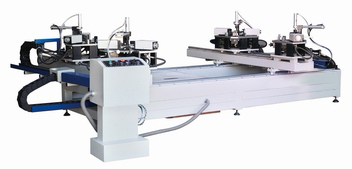

Four-point Corner Crimping Machine LZJ4-1800x3000
Features::
Used for corner punching and riveting combination, four corners connecting at a time are available.
Clamping device can move front and back automatically, easily operation.
Through low-pressure and high-pressure conversion function ensures synchronous punching and improves the location accuracy and corner combining quality.
Wide profile processing range due to convenient corner combining cylinder setting.
Easy operation, reliable performance, advanced technique and convenient maintenance.
Technical Parameters:
Input voltage: 380V/50Hz
Input power: 4.5kw
Air pressure: 0.5~0.8MPa
Air consumption: 0.45 L/Time
Hydraulic pressure: 15 Mpa
Oil capacity: 60L
Max. Profile width: 120mm
Max. Dimension: 1800*3000mm
Min. Dimension: 450*450mm
Overall dimension: 4700*2750*1200mm
|
