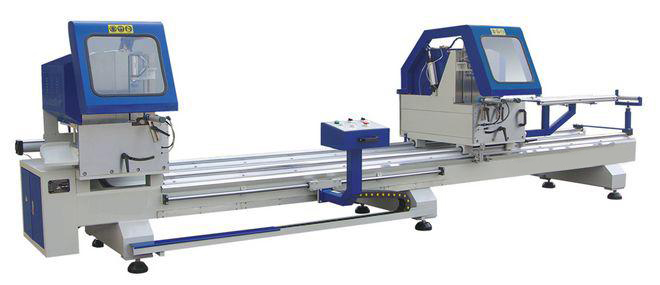

Double Mitre Saw LJZ2-500 X 4200(5000)

Features：

Used for cutting PVC profiles and aluminum profile.

Two heads work independently or together.

Cutting angle： 90, 45, 67.5(22.5) degree

Uniform speed feeding and smooth motion due to air-draulic damping cylinder.

Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.

Automatic protecting guards result convenience and safety.

Technical Parameters：

Input voltage：                     380V/50Hz

Input Power：                       4.5Kw

Air pressure：                      0.5~0.8MPa

Air consumption：                200L/min

Motor rotation speed：         2800r/min

Cutting length ：                   360~4200mm(360~5000mm)

Cutting width:                        10~130mm

Cutting height：                    10~300mm

Saw feeding speed：            0~3m/min

Saw blade diameter：           500mm

Overall dimension：              5500*1700*1600mm; 6300*1700*1600mm
