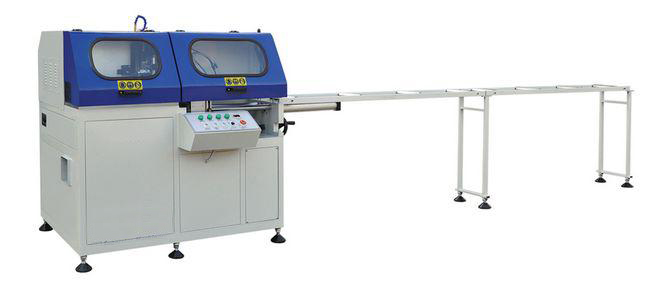

Used for cutting connecting corners for aluminum windows&doors.

Automatic feeding system controlled by PLC, result high efficiency.

Recording system record the number that already cut.

Imported carbide saw blade gives accurate processing, and high durableness.

It has Features： of high automation, reliability and efficiency.

Technical Parameters：

Input voltage：                 380V/50Hz

Input Power：                   2.2Kw

Air pressure：                  0.5~0.8MPa

Air consumption：            150L/min

Motor rotation speed：    2840r/min

Saw blade diameter：      500mm

Saw feeding speed:          0~3m/min

Cutting height：               120mm

Auto feeding length：      3~400mm

Overall dimension：        2200x1400x1300mm
