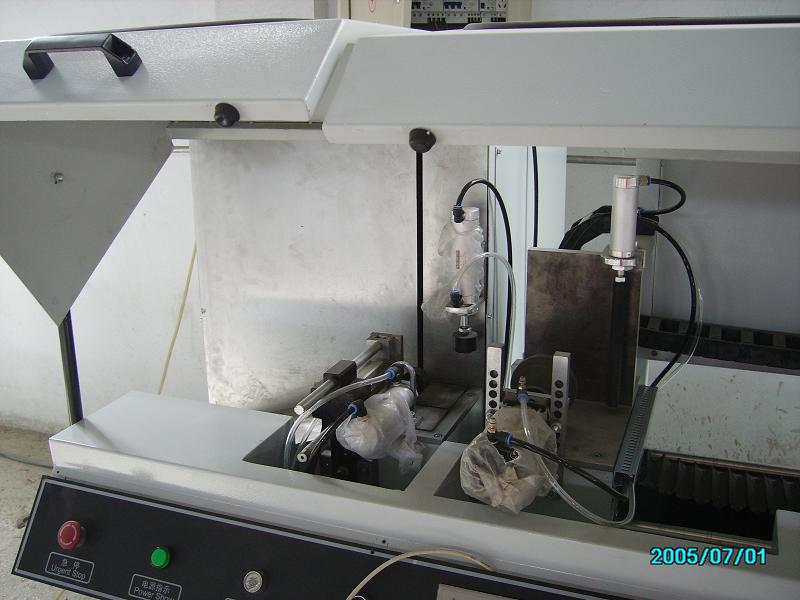

CNC Corner Connector Cutting Saw (LJMJ-CNC-500)

Features：

1) Used for Aluminum corner cleat cutting

2) Cutting parameter numerically controlled: Length, width and quantity

3) Imported spindle motor from Italy to ensure high stability and precision

4) Once clamp, automatic feeding, automatic cutting and automatic corner cleat output

5) New designing with large cutting range

6) Ball screw locating and feeding: High cutting length precision

7) Guide pressing device ensure 3mm length corner cutting without cusp

8) Mullion profiles can be cut by adjusting the operation system

9) Gas-liquid converter adjust cutting speed with smooth feeding

10) Aluminium material sloping panel for cleaning the waste material and protecting saw blade

11) Slope worktable to prevent small pieces falling into the seam and damage the saw blade

12) Special designed for saving profiles

13) Manual feeding can also be obtained to finish the excess profiles cutting

Technical Parameters：

Max. Length of corner：            600 mm

Mini. Length of corner：            3 mm

Blade diameter：                       500 mm

Blade aperture：                       30mm

Max. Cutting width：                  150 mm

Max. Cutting height：                300mm

Air consumption：                     150L/min

Blade feeding speed：              1-15 m/min

Input power：                             3 kw

Rotational speed of spindle：    2850rpm

Dimensions：                            1600× 1300× 1600 mm

Height of working stand：          1150 mm

Length of the stand：                4m~6m

Size of output box：                   1mx1mx1m (optional and size-adjustable)

Weight：                                    600kg
