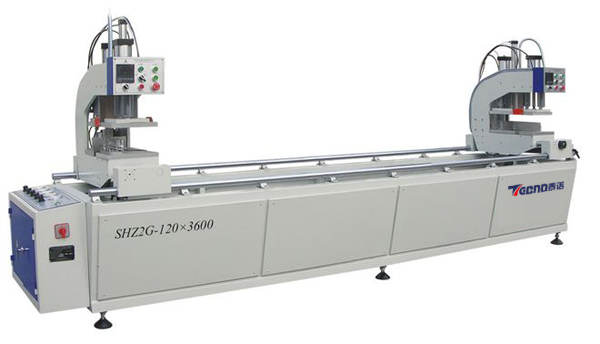

Two-head Welding Machine SHZ2G-120x3600

Features:

Used for PVC window and door processing.

JDB solid oil less bearing kinematics pair,

LM linear guide kinematic pair and PLC control system

adopted ensures high accuracy and efficiency

Machine heads can work separately or together.

Technical Parameters:

Input voltage：                      220V/50Hz

Input power：                        2.5Kw

Air pressure：                       0.4-0.6MPa

Air consumption：                100L/min

Welding length：                  400-3600mm

Welding height：                  20-120mm

Overall dimension：             4300*950*1700mm
