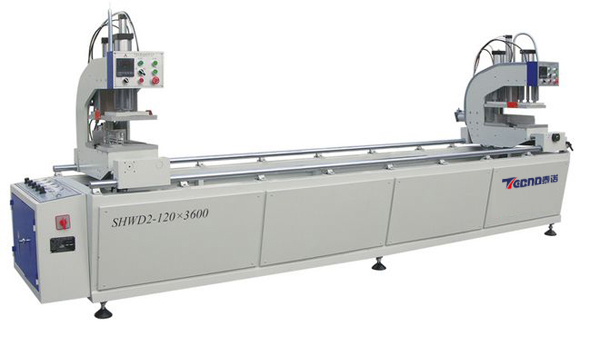

Two-head Seamless Welding Machine SHWD2-120x3600

Features:



Used for colored,co-extrusion and sprayed PVC profiles.

Profile clamps with cutters to ensure 0.2mm seam welding.

Locating plate can slide along square guide, increased locating precision.

Easy-change for special fixture, increased corner strength and cleaning appearance.

JDB solid oil less bearing kinematics pair, LM linear guide kinematic pair and PLC control system

adopted result high accuracy and efficiency.

Parameters can be set to meet various profiles processing requirement.

Machine heads can work separately or together.



Technical Parameter:



Input Voltage:                          220V/50Hz

Input power:                             2.5 (kw)

Operation Air pressure:           0.4--0.6 (MPa)

Air consumption:                     100 (L/min) )

Welding height:                       0--120 (mm)

Welding Width:                        120 (mm)

Welding Range:                      400--3600 (mm)

Overall dimension:                  4400× 1100× 1700(mm)

Weight:                                      2000 (kg)
