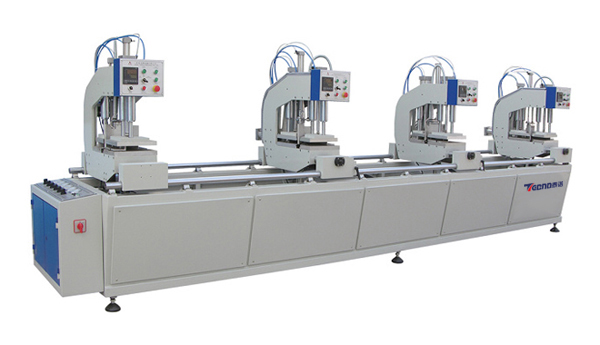

Features:
Used for colored,co-extrusion and sprayed PVC profiles.
Profile clamps with cutters to ensure 0.2mm seam welding.
Locating plate can slide along square guide, increased locating precision.
Easy-change for special fixture, increased corner strength and cleaning appearance.
JDB solid oil less bearing kinematics pair, LM linear guide kinematic pair and PLC
control system adopted result high accuracy and efficiency.
Parameters can be set to meet various profiles processing requirement.
Machine heads can work separately or together.
Technical Parameters:
Input voltage: 380/220V 50Hz
Input power: 4.5Kw
Air source: 0.7-0.8MPa
Air pressure: 0.5-0.8MPa
Air consumption: 260L/min
Welding length: 400-4500mm
Welding height: 20-120mm
Overall dimension: 5300*950*1700mm
