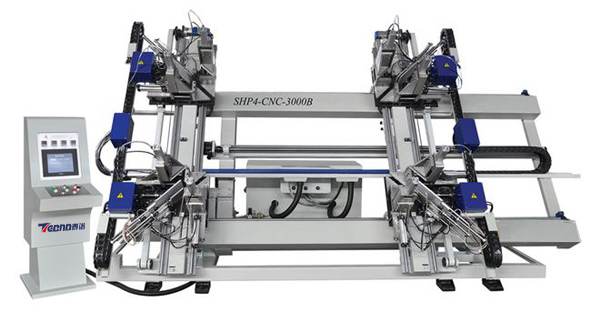

CNC Four-point Welding Machine SHP4-CNC-3000B

Features:

Imported computer control system with high precise welding, easy operation and high stability.

Imported linear bearing system kept the running stable.

Special "Know _ How" technique keep the high corner strength.

Measurement error compensation is available to increase welding precision.

Parallel Welding Type.To realize parallel welding and strengthen corner welding,
two profile-clamps synchronously and symmetrically feeding

Used for automatically realizing the welding of frame.

Technical Parameters:

Input Voltage：                      380V/220V 3N~50Hz

Input Power：                        10(kw)

Air Pressure:                          0.4~0.6(MPa)

Air Consumption：                 80(L/min)

Welding Height：                   25~160(mm)

Welding Width(Max)：           130(mm)

Welding Range：                  400×400~1800×3000(mm)

Overall Dimension：              5000×2000×2860(mm)

weight:                                   3000(kg)
