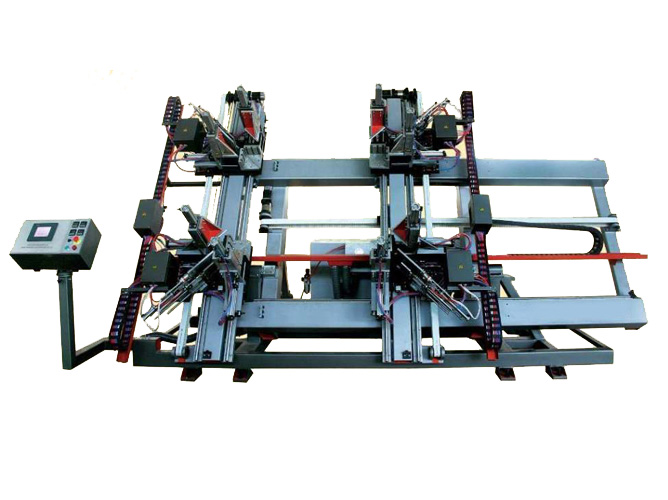

Four Point Welding Machine CNC(parallel welding) -- SHP4-CNC-3000B

Features:

1. Imported computer control system with high precise welding, easy operation and high stability.
2. Imported linear bearing system kept the running stable.
3. Special “Know — How” technique keep the high corner strength.
4. Measurement error compensation is available to increase welding precision.
5. Parallel Welding Type.To realize parallel welding and strengthen corner welding,
    two profile-clamps synchronously and symmetrically feeding
6. Used for automatically realizing the welding of frame.

Parameter：

Input Voltage:                          380V/220V 3N～50Hz
Input Power:                            10(kw)
Air Pressure:                           0.4～0.6(MPa)
Air Consumption:                     80(L/min)
Welding Height:                       25～160(mm)
Welding Width(Max):               130(mm)
Welding Range:                      400×400～1800×3000(mm)
Overall Dimension:                  5000×2000×2860（mm）
weight:                                    3000(kg)
