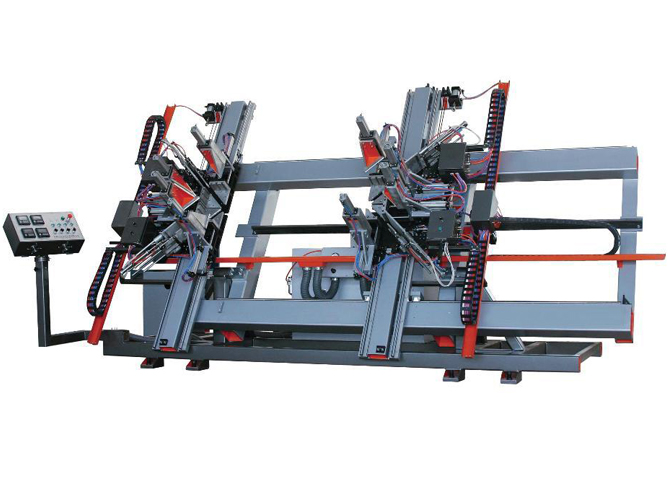

Four Point Welding Machine -- SHP4-3000B

Features:

1. Used for automatically realizing the welding of frame.
2. Imported linear bearing system kept the running stable.
3. Special “Know — How” technique strengthen corner welding.

Technical Parameters:

Input Voltage：                             380V/220V 3N～50Hz
Input Power：                               7(kw)
Air Pressure：                              0.4～0.6(MPa)
Air Consumption：                        80(L/min)
Welding Height：                          Single Layer 25～160(mm)
Double Layer：                            25～60（mm）
Welding Width：                           Single Layer 130(mm)
Double Layer：                             60（mm）
Welding Range：                         380×420～1800×3000(mm)
Overall Dimension：                     5000×2000×2860（mm）
weight：                                        3000(kg)
