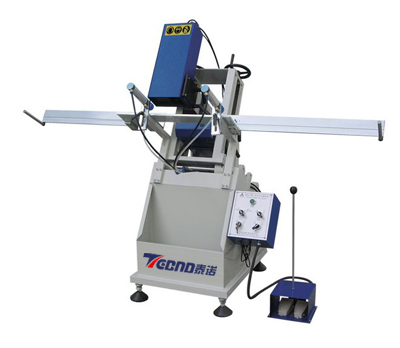

Two-Axis Water Slot Router SCX02-2-50

Features：

Used for milling all kinds of water slots and Air pressure：balance grooves.

Two milling heads (upper and lower) are set to satisfy various profile processing requirements.

Clamp once can realize two-direction slots and holes' processing.

The length of milling water slot within 60mm is adjustable and use widely.

Milling head's angle and the position of its operating table, which is adjustable,
can meet different profiles and positions' processing requirements.

Apply to high grade and mass windows production.

Technical Parameters：

Input voltage：                      220V/50Hz

Input power：                         0.9Kw

Air pressure：                        0.4~0.6MPa

Air consumption：                  30L/min

Motor rotating speed：          28000r/min

Max.milling length：               50mm

Max.milling depth：                40mm

Diameter of milling cutter：    4mm/5mm

Overall dimension：               2490*800*1650mm
