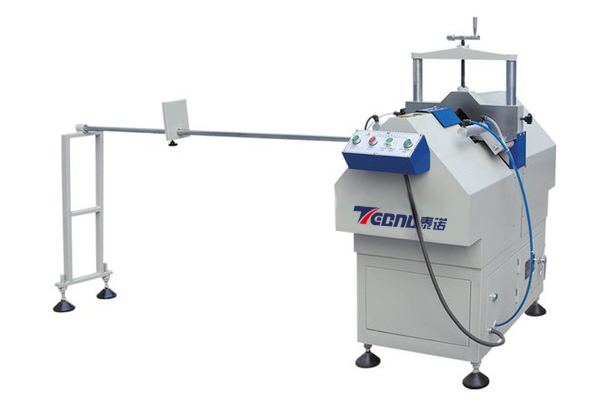

V-Notch Saw LJVW-65

Features：

Used for cutting 90 degree V groove for aluminum and PVC profiles.

Controlled by pneumatic drive

Compact structure and operating simply.

Feeding smoothly and high cutting precision.

Technical Parameters:

Input voltage：                   380V/50Hz

Input power ：                    1.5Kw

Air pressure：                    0.4~0.6MPa

Air consumption：              80L/min

Motor rotating speed：       28000r/min

Cutting length：                  300~1800mm

Max.Cutting width：            120mm

Max.Cutting height：           65mm

Overall dimension：           1480*560*1350 mm
