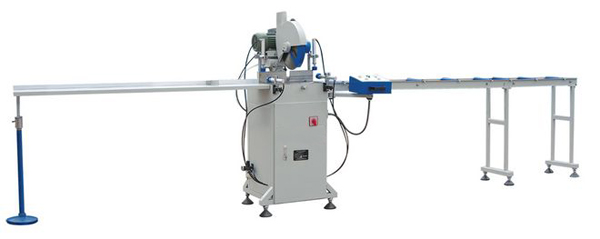

Single Mitre Saw LJD-01

Features：

Used for 45~90 degree cutting of aluminum and PVC profiles.

Adopts wabble feeding and pneumatic drive.

High accuracy, efficiency and easy operation.

Technical Parameters:

Input voltage：                 380V/220V/50Hz

Input power ：                  1.1Kw

Air pressure ：                 0.4~0.6MPa

Air consumption：            50L/min

Motor rotating speed：     2800r/min

Max.Cutting width：          180mm

Max.Cutting height：        100mm

Overall dimension：         4800*500*1200mm
