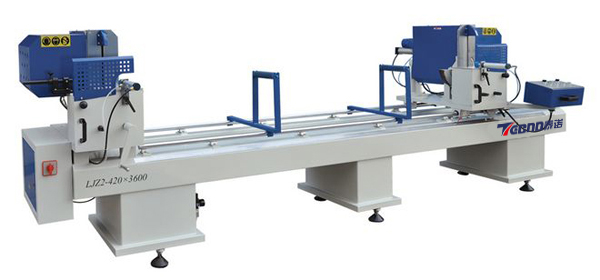

Double Mitre Saw LJZ2-450X3600

Features



Used for PVC and aluminum profile cutting with angle between -45 ° And 45°

Feeding in a linear way ensured its stability.

High cutting precision due to setting the saw blade in spindle.

Two machine heads move toward inner as well as outer.

Moveable head with automatic feeding operates simply.

Machine guide adopted imported linear bearing system, ensured high cutting precision.



Technical Parameters:



Input voltage:                      380V/50Hz

Input power:                        3Kw

Air pressure:                       0.4~0.6MPa

Air consumption:                 20L/min

Motor rotating speed:         2800r/min

Cutting length:                    360~3600mm

Max.Cutting width:              100mm

Max.Cutting height:            150mm

Overall dimension:             4300*1130*1340mm
