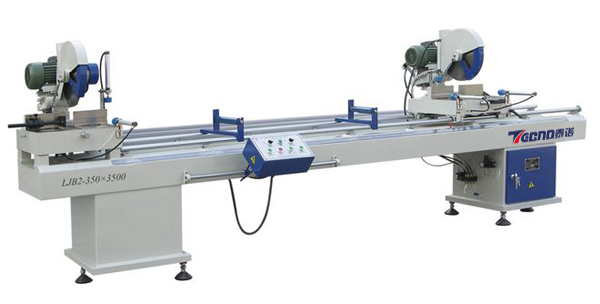

Double Mitre Saw LJB2-350x3500

Features



Used for 45~90 degree cutting for PVC and Aluminium  profiles.

Adopts wabble feeding and pneumatic drive.

High accuracy, efficiency and easy operation.



Technical Parameters:



Input voltage:                     380V/220V/50Hz

Input power:                       2.2Kw

Air pressure:                      0.4~0.6MPa

Air consumption:               100L/min

Motor rotating speed:        2800r/min

Cutting length:                   450~3500mm

Max.Cutting width:             180mm

Max.Cutting height:           100mm

Overall dimension:            4500*1300*1450mm
