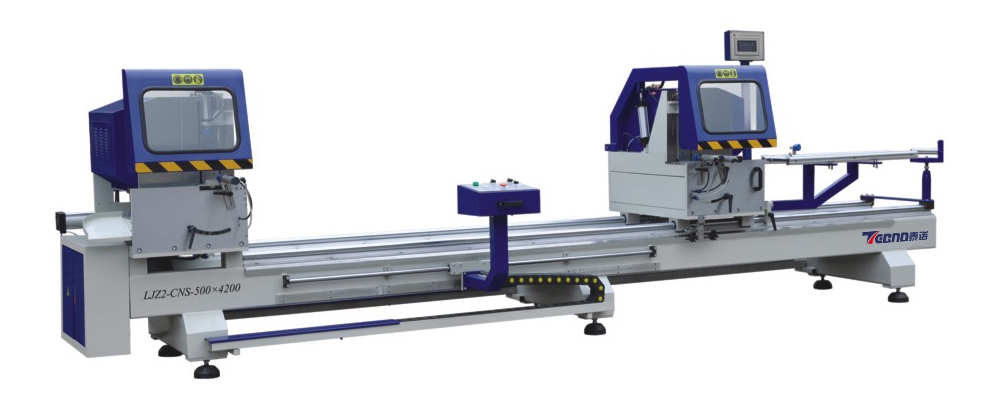

Digital Display Double Mitre Saw LJZ2-CNS-500x4200 (5000)

Features：

It is cutting saw for PVC profiles, aluminium profiles and curtain wall.

Cutting angles: 90° , 45° , and 67.5(22.5)° .

Touched screen and import controlling system adopted with high accuracy.

Setting heights of profiles will show the lengths of

The system can store several sizes of profiles, convenience and efficiency.

Digital display system adopted, with high efficiency and accuracy.

Technical Parameters:

Input voltage：                380V/50Hz

Input power：                  4.5Kw

Air pressure：                 0.5~0.8MPa

Air consumption：           200L/min

Motor rotation speed：   2800r/min

Cutting length：              360~4200mm; 360~5000mm

Cutting width：                10~130mm

Cutting height：              10~300mm

Saw feeding speed：       0~3m/min

Saw blade diameter：      500mm

Overall dimension：         5500*1700*1600mm; 6300*1700*1600mm
