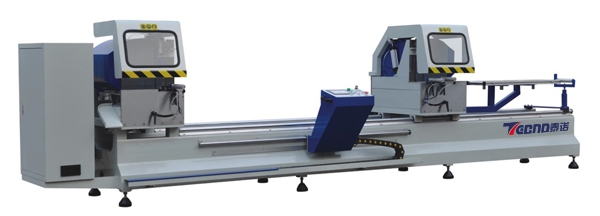

CNC Double Mitre Saw LJZ2-CNC-500 x 4200(5000)
Features：
Used for profiles such as aluminum profile and curtain wall.
Cutting angles: 90°, 45°, and 67.5(22.5)° .
Cutting dimension controlled by screw, with high accurate driving and locating. Right head
can achieve the setting location automatically. Right head feed the profiles automatically.
Imported CNC system adopted, which includes PLC, touched screen, servomotor, and servodriver,
photoelectrical switch, and photoelectrical cells etc.
Air-draulic damping cylinder ensures uniform speed feeding and smooth motion.
Saw blade feeding system adopts imported linear guide kinematic pair ensures high accuracy.
Automatic protecting guards ensures convenience and safety.
Technical Parameters:
| Input voltage： |
380V/50Hz |
| Input power： |
6Kw |
| Air pressure： |
0.5~0.8MPa |
| Air consumption： |
200L/min |
| Motor rotation speed： |
2800r/min |
| Cutting length： |
360~4200mm; (360~5000mm) |
| Cutting width： |
10~130mm |
| Cutting height： |
10~300mm |
| Saw feeding speed： |
0~3m/min |
| Saw blade diameter： |
500mm |
| Overall dimension： |
5500*1700*1600mm; 6300*1700*1600mm | |
