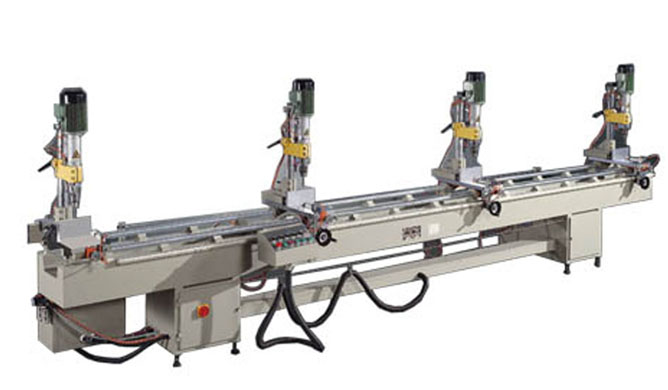

Pneumatic Multi-head Drilling Machine GM-368B

Introduction:

This equipment primarily is used for processing the through-hole or non-through-hole on the profiles
of curtain wall and aluminum alloy. It may also used for the processing of industrial profiles and
window profiles. Because of adopting the motor and the direct-ally style outputs of cylinder, as a result,
drilling a hole more steady and the accuracy is high. This drill machine can pack to the head of
clip-drill and the multi-head drills station, making drill a hole more convenient.

Main Technical Parameter:

1. The quantity of power drill…………..........................................4~6 pieces
2. Worktable dimension………………………................................240x220mm
3. Max. distance of drilling head moves from front to rear……….60mm
4. Max. distance of power drill moves from up to down…………..150mm
5. Drilling head rotation speed(power drill)…………………………2800r/min(drill alu)
                                                                    ………………………..1400r/min(drill iron)
6. Min. distance between each hole…………………………….........245mm
7. Min. distance between single hole………………………………....20~22mm(power drill made in Taiwan)
8. Drilling head feeding speed………………..................................0.1~0.2mm/r
9. Max. drill and cut hole diameter……………...............................φ15mm(single hole)
10. Min. drill and cut hole diameter…………………………………..φ3mm
11. Max. processing aluminum profile end size……………………..200x260mm
12. Max. processing aluminum profile length………………………..5700mm
13. Motor power………………………………………………………....0.75KWx4
14. Motor rotation speed……………………………………………….1400r/min
15. Weight………………………………………………………………..about 1500KG
(The hole diameter size is changed as per the different power drill parameter which choosed by the customer)
