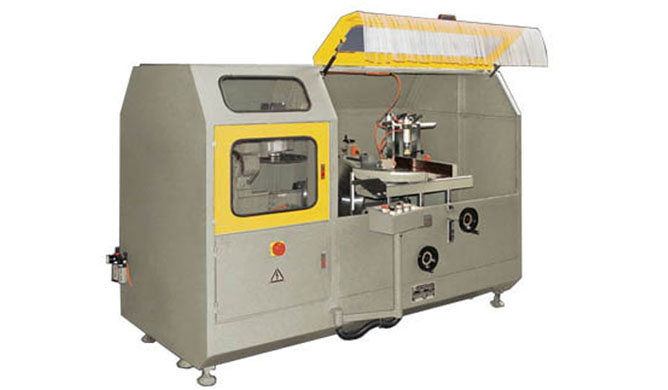

Curtain Wall Notching Saw GM-318B

Introduction:

It is mainly used for processing notching of aluminum curtain wall materials and window materials,
and also used to process notching of plastic profiles. With high speed and high machining precision.
This machine tool has Italian display device and original Italian special motor, therefore it is of big
dimension ranges, precise cutting angles and good smoothness. This aluminum saw is suitable
for processing notching of aluminum curtain wall materials and window materials.

Main Technical Parameter:

1. Saw cutting dimension(WxH)..................260x210mm(90°)
                                                 ..................260x146mm(45°)
2. Motor power............................................2*2.2kw
3. Main motor rotation speed......................2840r/min
4. Saw blade dimension..............................Φ500xΦ30x120T
5. Saw blade feeding speed........................0-3m/min
6. Saw blade retracting speed.....................2-3m/min
7. Saw blade swing angle range..................+/-45°
8. Worktable swing angle range..................+/-45°
9. Working air pressure...............................0.6-0.8Mpa
10. Working voltage....................................380V
11. Overall dimension(LxWxH)....................2500x1300x1800mm
12. Weight..................................................1000kg
