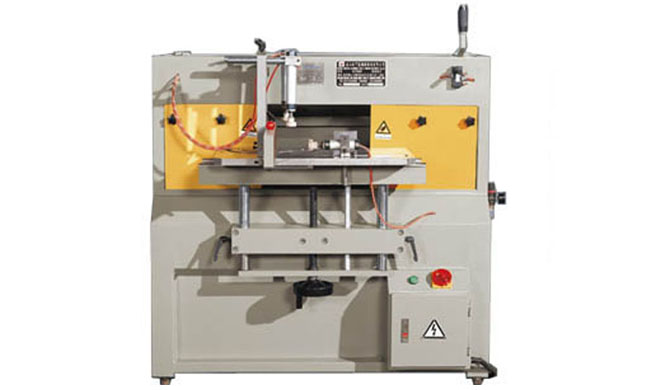

Arc Explorator End Mill Machines GM-313CM

Introduction:

This mill machine tool applies particular 3kw integral spindle motor, manual control stat on feeding, andfeatures in huge processing dimension and high precision. So this mill machine is very suitable for the rabbetpro cessing of Aluminum alloy curtain wall materials, window section and super-arge sanitary wares Utilizin the blades gaskets, can.

Main technical parameter:

1 Dimension of work table(L*W)………………………….........700*350mm
2 Up and down adjusting height for the work table……….....200mm
3 Adjustable angle for the work table………………………....(-15°~90°~+15°)
4 Max Blade dimension of (Screw blade)…………………. ...Φ350*Φ32*105*12T
5 Workable section material terminal face(W*H)………........350*300mm
6 Workable section material depth…………………………….120mm
7 Shaft extension of electric motor…………………………….130mm
8 Motor rotary speed ……………………………………………2840r/min
9 Motor power……………………………………………………..3kw
10 Operation air pressure……………………………………….0.6~0.8Mpa
11 Overall dimension(L*W*H)…………………………………...880(2400)*1350*1720mm
12 Weight………………………………………………………….450kg
