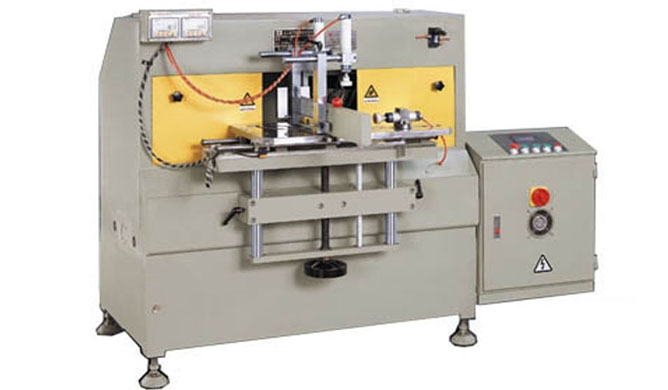

Arc Explorator End Milling Machine GM-313CD

Introduction:

Tailor made 3kw spindle motor is used, and the speed of the variable frequency speed regulation system is 2800-5600rpm. Feeding is controlled by serve system There is PLC + touch screen Digital readout device for angle and size (Italy gauge display) is provided for the worktable There is arc guide exploratory profile milling The finish size is especially large and the precision is high. The milling machine is particularly suitable to the profile modeling of arc notch and processing of common notch of aluminum alloy curtain wall, Tailor-made spiral cutter is used for processing arc notch. Adjust the angle of the positioning plato, and the tenon port of pofiie with angles can be milled, The milling speed of this milling machine can be adjusted with the variable frequency adjustable speed motor according to different milling thickness, so as to reach the optimal milling effect.

Main Technical Parameter:

1 Dimension of work table(L*W)…………………………………………...700*350mm
2 Up and down adjusting height for the work table……………………...200mm
3 Adjustable angle for the work table……………………………………...(-15°~90°~+15°)
4 Max Blade dimension of (Screw blade)……………………………….....Φ180*Φ32*105*12T
5 Workable section material terminal face(W*H)……………………........350*300mm
6 Workable section material depth………………………………………....75mm
7 Shaft extension of electric motor……………………………………........130mm
8 Motor rotary speed …………………………………………………….......2800~5600r/min
9 Motor power………………………………………………………………....3kw
10 The time needed by milling materials of each travel……………….....60s
11 Operation air pressure…………………………………………………....0.6~0.8Mpa
