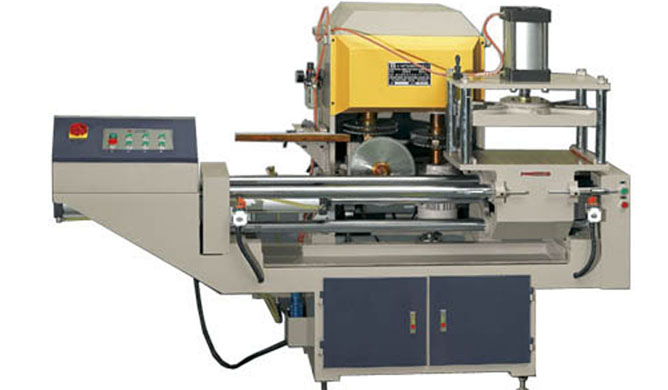

End-Milling Machine for curtain wall material GM-313F

Introduction:

Adopted particular structure of triangular cylindrical sliding track, for high strength and rigidity.
Move smoothly, stepless speed adjusting available, no creeping, the blade retract quickly,
save non-production time.Operate easily, adjust size accurately, milling precision≤0.1mm.
With 4 pieces of milling cutters to mill out right workpiece one time. 4 pieces of milling cutters
are installed in axes of 3 main exectromotors, can adjust the height to fit for aluminum material.
The workbench is large enough to mill 10~12 pieces profiles one time, high efficiency.
With one cutting blade.3 electromotors star up independently, could be selected as per workpieces’
requirement.38-90 series aluminum profile, heat insulation material and curtain wall profile could
be milled.Pneumatic spray mist blade lubrication coolant system.

MAIN TECHNIQUE PARAMETER:

1. Working air pressure…………….......0.6~.65Mpa
2. Air consumption……………………….200L/min
3. Power supply…………………………..380V/50Hz
4. Input power…………………………….3x2.2KW
5. Milling cutter rotation speed………....2840r/min
6. Milling cutter dimension…………….. Φ250 xΦ50 x 6.5mm
7. Worktable dimension (LxW) ………...500x320mm
8. Milling travel…………………………...950mm
9. Overall dimension (LxWxH) …………2280x1040x1640mm
10. Weight………………………………..1300KG
