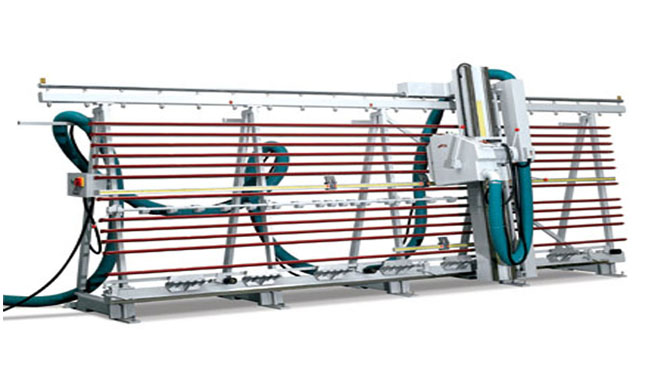

Aluminum Composite Panel Grooving and Cutting Machine
The machine adopts special imported hard alloy blades and tools, featuring superb high-speed balance performance, high processing precision and durability, saving time and energy. Blade grooving depth can be adjusted from 0 to 8mm. It is capable of grooving and cutting, capable of horizontal and vertical cutting, and with safety positioning. The overall machine is of superior rigidity, with stable cutting, without vibration traces.
MAIN TECHNIQUE PARAMETER
NO |
Model |
GM971 |
GM971A |
1 |
Cutting dimension (LxH) |
4100x1600mm |
4100x1300mm |
2 |
Blade dimension (for grooving) |
Φ250×Φ30×15mm |
Φ250×Φ30×15mm |
3 |
Blade dimension (for cutting) |
Φ250×Φ30×3mm |
Φ250×Φ30×3mm |
4 |
Motor power |
3Kw |
3Kw |
5 |
Motor rotation speed |
2840 rpm |
2840 rpm |
6 |
Diagonal deflection |
≤2000mm, deflection≤1.5mm |
≤2000mm, deflection≤1.5mm |
>2000mm, deflection≤2.5mm |
>2000mm, deflection≤2.5mm |
7 |
Overall dimension (L×W×H) |
5200×1500×2300mm |
5200×1500×2300mm |
8 |
Wooden case packing dimension (main lather) |
5500×1000×2600mm |
5500×1000×2200mm |
9 |
Wooden case packing dimension (motor) |
2700×1200×1000mm |
2300×1200×1000mm |
11 |
Container type required |
40’HQ |
20’GP, 40’GP or 40’HQ |
10 |
Weight |
1900Kg |
1800kg |
11 |
FOB Guangzhou price |
USD10915/set |
USD10844/set |
12 |
Delivery time |
15-20days |
15-20days |
13 |
Warranty |
12months after shipment |
12months after shipment | |
